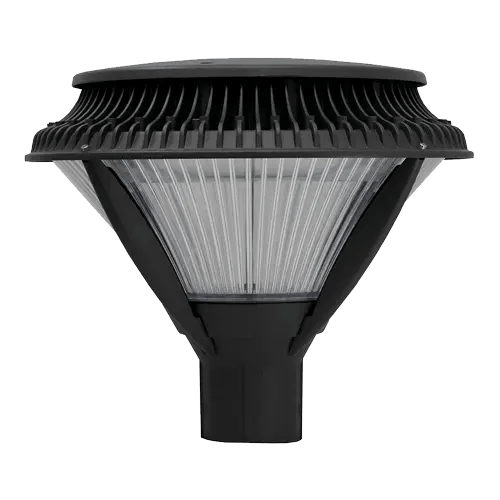

Enclosed LED Round Post Top Mounted Area Light
The Jemm PT71 Architectural Enclosed Small Round Post Top Light is available in a Type V distribution with two lens options designed to replace HID lighting systems up to 250w MH or HPS. The fixture mounts to a pole top tenon. Typical area lighting applications include parking areas, walkways, and street lighting applications. Mounting heights of 12 to 20 feet can be used based on light level and uniformity requirements.
- Housing: Die Cast Aluminum Housing, Integral Heat Sinking. Photocell Adaptable.
- Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
- Finish: Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
- Lens: Clear UV-Stabilized Polycarbonate or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Array Lens to Seal LED Array
- EasyLED LED: Aluminum Boards
- Mounting Options: Accommodates “P3″ 2-7/8 OD x 3” Tenons
- Wattage: 65w Array:
- Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
- Warranty: 5-Year Warranty for -40°C to +50°C Environment.
