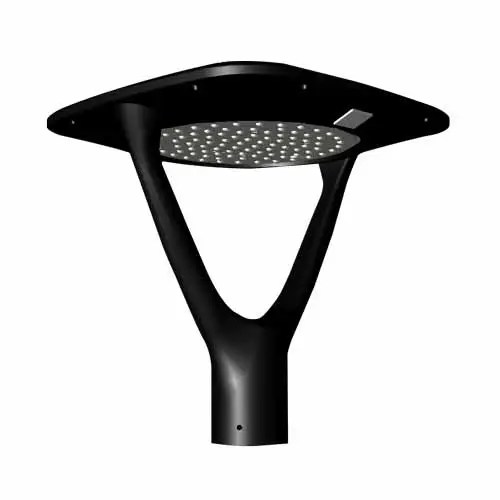

The Jemm PT32 37w Aeroform Architectural Open Dual Arm Square Post Tops are available in Type II, III, IV or V distributions designed to replace HID lighting systems up to 70-150w MH or HPS. The fixture mounts to a pole top tenon.
- Housing: Die Cast and Sand Cast Aluminum Housing, Integral Heat Sinking. Photocell Adaptable.
- Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment.
- Finish: Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
- Lens: Clear UV-Stabilized Polycarbonate Vandal-Resistant Array Lens with Integral Optics. Gasketed to Seal LED Array
- Mounting: Accommodates P3 2-3/8″ O.D. x 3″ Tenons
- EasyLED LED: Aluminum Boards
- Wattage: 140w Array: 139.9w, System: 156w; (250-400w HID Equivalent)
- Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
- Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with Jemm Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
- Warranty: 5-Year Warranty for -40°C to +50°C Environment.
